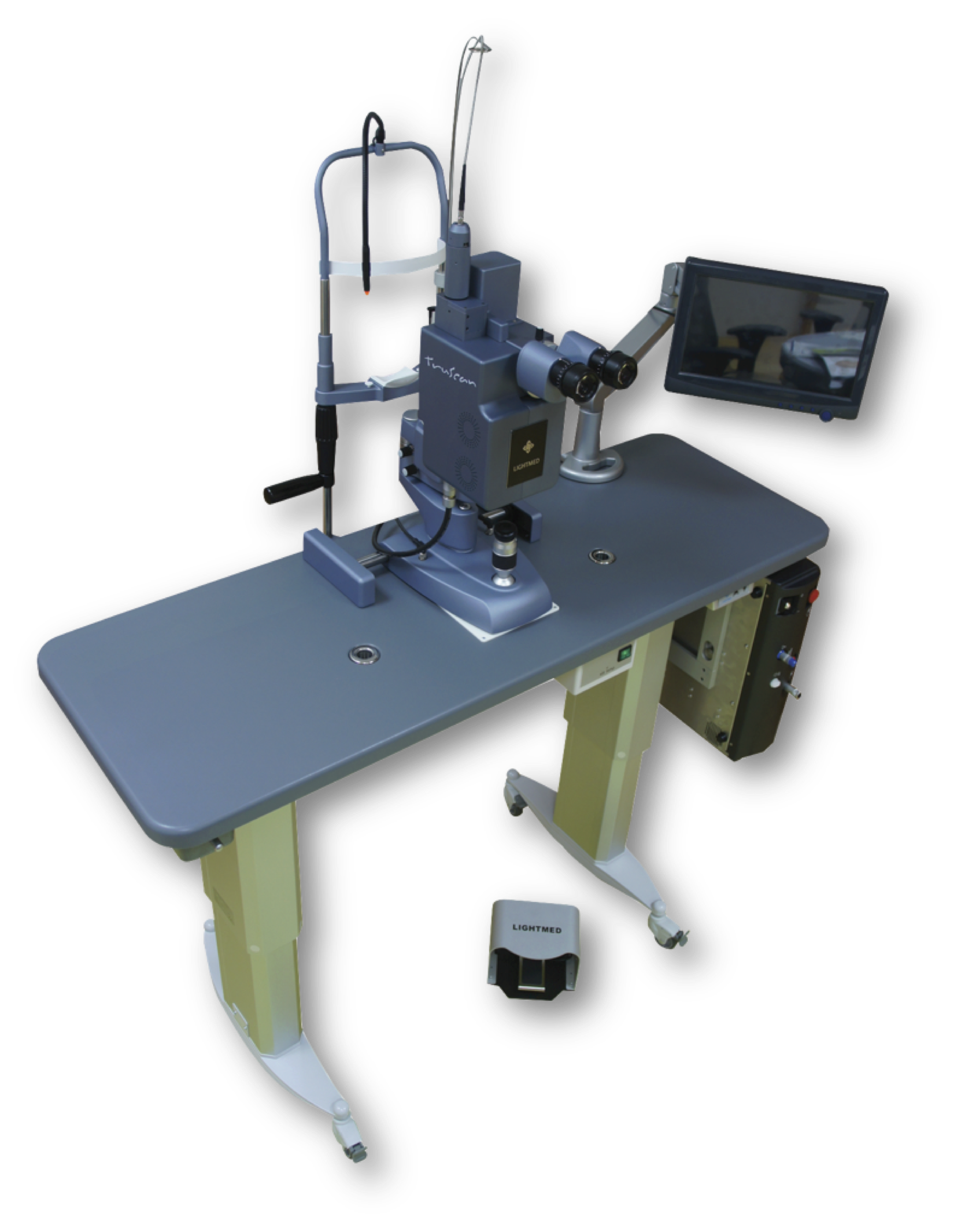

LIGHTLas TruScan Pattern Scanning Multi-Wavelength Laser
Details
offers versatile, safe, and repeatable management for retinal pathologies and glaucoma. Pattern scanning laser delivery provides ophthalmologists with enhanced treatment outcomes in both continuous-wave (CW) and sub-threshold modalities. The LIGHTLas TruScan is available with either single or dual wavelengths (532nm Green, 577nm True-Yellow, 670nm Red, and 810nm Infrared) and includes the largest range of customizable laser patterns. In addition to traditional photocoagulation capabilities, LightMed’s tissue-friendly sp-mode™ allows safe and effective treatment at the subthreshold level. Choice of single or dual wavelengths 532nm Green, 577nm True-Yellow, 670nm Red, and 810nm Infrared Pattern scanning laser delivery Continuous-wave and sub-threshold modalities Induction of relaxation duty cycles in the sub-threshold mode Sub-threshold mode helps reduce laser-caused tissue damage and other side effects Widest range of customizable laser patterns, including, circles, squares, lines, triangles, and arcs
Tech Specs
Power Output: Yellow (577nm): 2W (on Cornea) Infrared (810nm): 3W (on Cornea) Red (670nm): 700mW (on Cornea) Green (532nm): 3W (on Cornea) Wavelength: Yellow: 577nm Infrared: 810nm Red: 670nm Green: 532nm Mode of Operation: Continuous Wave Laser Type: Optically Pumped Dual Diode Solid State Exposure Duration: 0.015 – 3.0s, continuously variable Repeat Interval: 0.01 – 3.0s, and single Micro Pulse Setting (disengaged in 670nm and 532nm mode): Micro Pulse Duration: 200µs Micro Pulse Duty Cycle: 10% Micro Pulse Period: 1800µs Pattern Scanning (disengaged in 670nm mode): Single, Line, Square (2x2, 3x3, 4x4, 5x5), Macular Arc (single, double, triple ¼, ½, ¾), Circle, and Triangle – Spot width, density and 360 rotation available for each pattern. Spot size: Single Spot: Continuously variable 50µm to 1000µm Scanning Patterns: Continuously variable 100µm to 500µm Safety Class: Class 4 Aiming Laser: Red laser diode (650nm) 0.1 – 1.0mW continuously variable Cooling System: Fan cooled and TEC’s for Laser Diode and Crystal Dimensions: TruScan Console: 12cm H x 38cm W x 40cm D Complete System on Table: 75cm H x 120cm W x 42cm D TruScan on Trolley: 90cm H x 45cm W x 46cm D Weight: Laser Console: 10kg Complete System on Table: 92kg System on Trolley: 72kg
