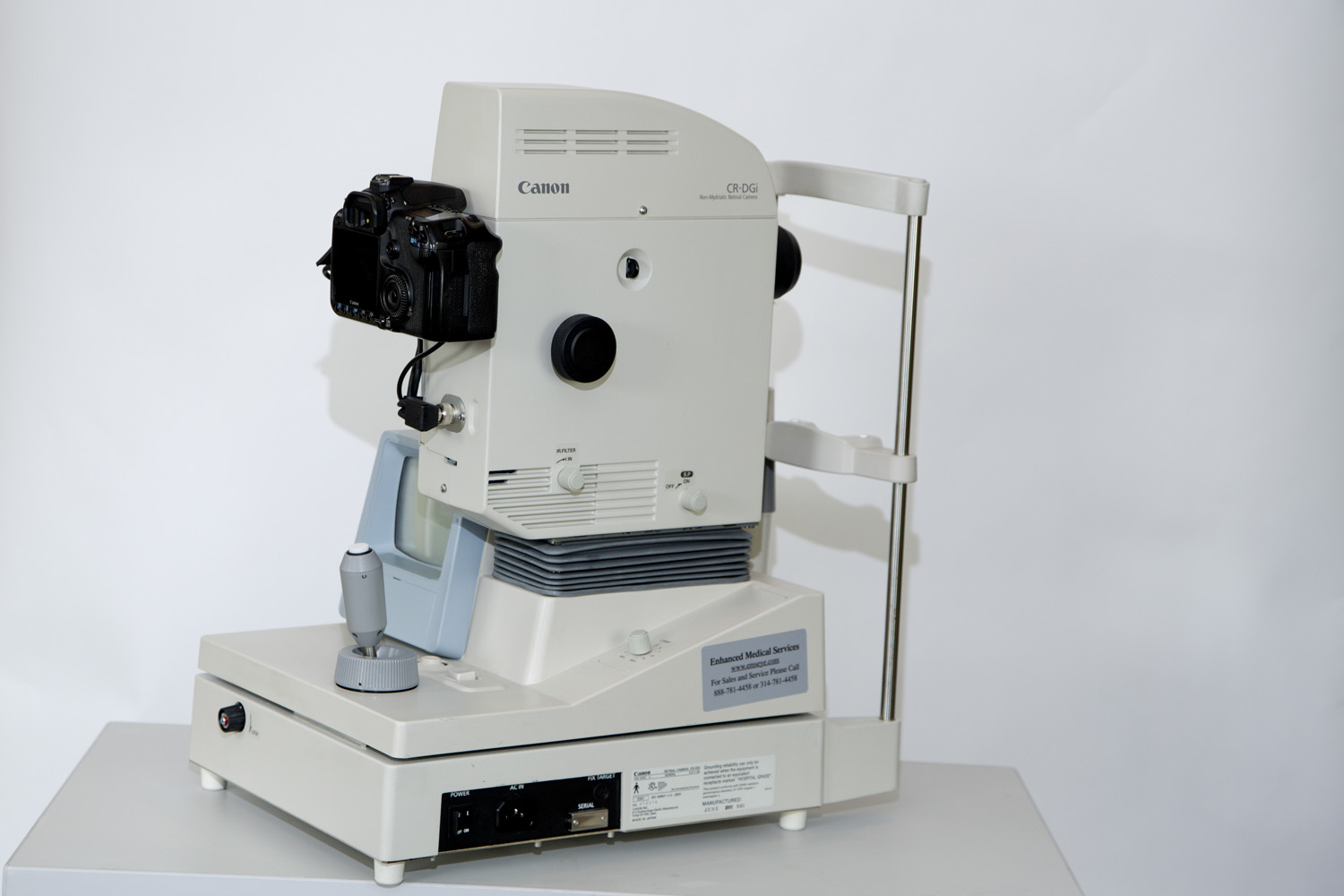

The Used Canon CR-DGI Non-Mydriatic Retinal Camera Features: User-Friendly Internal Fixation Target Easy Eye Fixation Immediate Access to Taken Pictures Only Small Amount of Light Necessary for Clear Images Electronic Filing Remote Storage PC-Based Video Conference Easy Alignment & Focusing Simple preparation for image capture Fixation Target Eye fixation is simplified by user-friendly internal fixation target Reduced Illumination Small amount of light needed to capture clear images
Type Non-mydriatic Angle of View 45 degrees Operation Distance 45mm from the front of objective lens Minimum Pupil Diameter 4mm Image Size 17mm on the sensor Attachable Digital Camera Canon EOS Digital Sensor Resolution 6.3 megapixels with Canon EOS 10D (Resolution depends on model of attached camera) Patient's Diopter Compensation Range Without compensation lens: -12 to +15D With "-" compensation lens: -7 to -33D With "+" compensation lens: +11 to +35D Working Distance Adjustment Outer eye display: split pupil alignment Retinal display: working distance dots Fixation Target Dot matrix Light Source Observation: halogen lamp, 12V / 50W Recording: strobe tube, max. 300W Built-in Monitor 5-inch monochrome TV monitor Data Output RS422 Power Supply 110 - 120V AC, 60Hz 220 - 240V AC, 50 / 60Hz Dimensions (W x L x H): 324 x 496 x 590mm (12.8 x 19.5 x 23.2in.) Weight Approx. 23kg (50.6lbs.)
