Treatment couch
Details

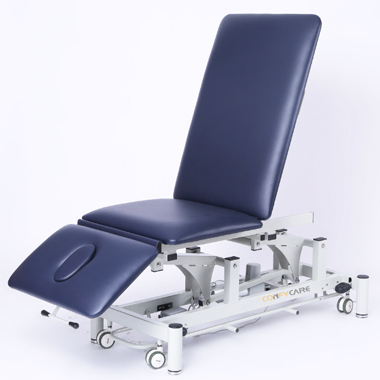

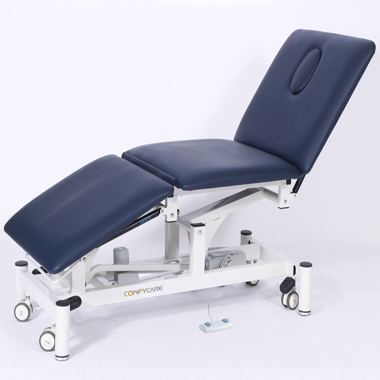

Robin series Treatment Couch is designed from our 10 years manufactures and 5 years electric tables’ manufactures. We are honest to say those excellent tables are leading items of whole worlds. This ROBIN Treatment Couch has a very strong table designed to withstand constant heavy use with minimal maintenance. This Treatment Couch addresses the requirements of a wide range of manual handling issues to benefit both patient and doctor.
Additional Information
1. Two electric motors, standard supports "Timotion" brands for Hi-Lo & middle lifting. 2. Treatment couch Able to lift up to 225kgworking weight from its lowest height. 3. Retractable castors 75mm for excellent mobility and safety. 4. Fire/stain/mildew/oil/water/wear resistant Med PVC available in 9 kinds of colors. 5. Lift for height variation by footbar system and middle section by foot switch. 6. The frame feet (*4) make round shape, avoid to hit people. 7. Treatment couch add more material ad better designed for some frame parts. 8. Adjustable backrest featuring double gas struts, angle adjustable from 0º to + 85º. 9. Adjustable head section featuring single gas struts, angle adjustable from +55° to -20° 10. Certificates: CE, FDA, ISO9001-2008, ISO13485-2007.
Tech Specs
Standard Options： 1. Treatment Couch EL05 Robin: Foot switch. 2. Hand switch is free to transfer 3. Paper roll holder unavailable 4. Extra width upholstery up to 70cm or 62cm. 5. Extra 2cm foam thickness for upholstery. 6. Contact us free for more available optional. Dimensions： Backrest Length: 95cm Middle Section Length: 51cm Head Section Length: 41cm Upholstery Length: 195cm Adjustable Height: 48cm – 94cm Foam Thickness: 5cm Foam Density: 36g/m2 Open: 195 x 66 x (48-94)cm Packing: 196 x 72 x 59cm (Heavy carton) N.W./G.W.: 70/83kgs 20GP/40GP:36/72pcs
Warranty & Returns
5 year warranty on frames, 3 years on motors, 12 months on foot controllers
