Details

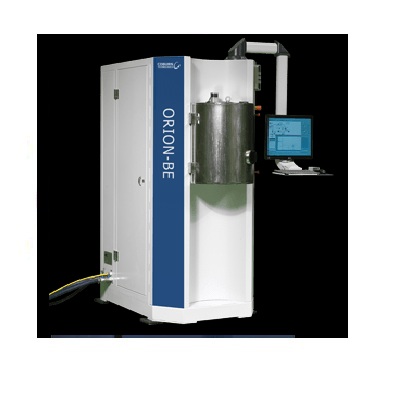

With its ultra-compact design and small footprint, the Orion-BE AR Lens Coater is perfect for small to medium sized labs. Support and trouble-shooting is easily accomplished with its built-in utility access. The Orion-BE is equipped with a universal, robust and rigged design for a wide range of optical coatings, including super-hydrophobic coatings and 24-hour production schedule. A Special Ion Source provides a solution to adhesion problems with hydrocarbon, hi-index, transition, and spin-coated lenses. LENS COATER FEATURES Pumping System T-1600 Turbo Molecular Pump (LEYBOLD, Germany) & Rotary vane pump model E2m40 (EDWARDS, UK) Evaporation Source: EB-Gun Max. Power 1.5KW, Crucible has 4 pockets of 7cc each Thermal Evaporator (boat) 1KW for Hydrophobic & Super-hydrophobic top coatings Ion Source VTC-EIS-1-HC, End-Hall type, Reactive Gas system included Substrate Heating System Infra Red heater of 1KW with reflector Fully automatic PC control system with Real-time software Fully automatic operation via editable recipes EBG Telemark-221 evaporation supported by Ion Assisted Deposition Overall Dimensions (mm) 700W x 1100D x 1800H Chamber Size (mm) 430D x 570(H) Ultimate Vacuum mbar, 2 x 10-6 Maximum Vacuum, mbar, 5 x 10-5 Batch capacity 6 lenses (planetary motion), 16 lenses (normal dome) Average Cycle time 25 min
